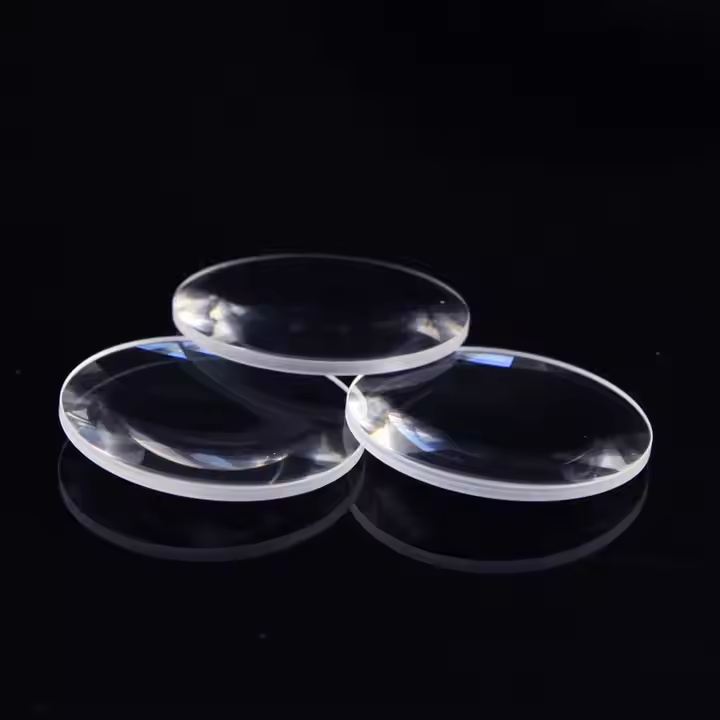

Definition of Meniscus Lenses
Meniscus lenses are a special type of optical lens that has two spherical surfaces. One side of the lens is convex (curved outward) and the other side is concave (curved inward). This design makes it thicker in the center than at the edges. Meniscus lenses are widely used in a variety of optical applications because they can reduce beam loss and minimize spherical aberration, thereby providing enhanced optical performance.
Characteristics and Applications of Meniscus Lenses
The unique structure of meniscus lenses allows them to manipulate light in specific ways, making them versatile in many optical systems. By adjusting the curvature of the convex and concave surfaces, meniscus lenses can focus or expand the beam depending on the application requirements. This type of lens is particularly useful in systems where controlling the beam diameter or optimizing image quality is critical.
Types of Meniscus Lenses
Meniscus lenses can be roughly divided into two categories based on curvature and intended use:
1. Positive Meniscus Lenses
Positive Meniscus Lenses are designed for applications that require smaller focal lengths (usually less than 2.5). In scenes with focal lengths between 2.5 and 10, this type of lens helps reduce spot size and improve image quality. Positive Meniscus Lenses have a smaller concave surface and a larger convex surface. This structure enables them to focus light more effectively, making them ideal for imaging systems, laser applications, and optical instruments that require extreme precision.
2. Negative Meniscus Lenses
Negative meniscus lenses are used in applications involving high-refractive-index infrared materials. These lenses feature a unique curvature design with a larger concave surface and a smaller convex surface, making them an excellent alternative to other negative lenses. Negative meniscus lenses are often used in beam expansion systems where reducing spherical aberration is critical. This makes them very effective in applications such as laser beam shaping, optical testing, and infrared imaging.
MOK Optics Meniscus Lenses
MOK Optics specializes in manufacturing high-quality meniscus lenses to meet a variety of optical needs. Our lenses are carefully crafted to ensure optimal performance in a variety of applications. Here are the specifications of our meniscus lenses:
Material:
Our meniscus lenses are made of BK7 or other high-grade optical materials. BK7 is a widely used optical glass known for its excellent transparency, low dispersion, and high refractive index, which is suitable for a variety of optical applications.
Dimensional Tolerance:
We maintain a tight dimensional tolerance of +0.0 to -0.1mm to ensure our lenses meet the stringent standards required for precision optical systems.
Center Thickness:
Our meniscus lenses have a center thickness tolerance of ±0.1mm, ensuring consistent performance and reliability.
Focal Length Tolerance:
Our lenses have a focal length tolerance of ±1%, ensuring precise focusing capabilities in demanding optical applications.
Surface Quality:
Our meniscus lenses have a 40/20 surface quality to minimize surface defects and achieve optimal optical clarity.
Face Shape:
Our lenses have a face shape of λ/2 at 633nm, on the flat side, ensuring excellent wavefront accuracy for high-performance optical systems.
Clear Aperture:
Our meniscus lenses have a clear aperture greater than 90%, maximizing the effective light transmission area and minimizing stray light.
Chamfers:
Our lenses feature a 0.25 mm chamfered edge with a typical angle of 45 degrees for increased durability and ease of installation.
Coatings:
We offer optional coatings for meniscus lenses to enhance their performance in specific applications. These coatings can increase light transmission, reduce reflections, or provide protection from environmental factors such as moisture and dust.
Applications of Meniscus Lenses
Meniscus lenses are used in a wide range of industries and applications due to their versatility and ability to enhance optical performance. Some common applications include:
1. Imaging Systems:
Meniscus lenses are commonly used in cameras, microscopes, and telescopes to improve image quality by reducing spherical aberration and minimizing spot size.
2. Laser Systems:
Positive meniscus lenses are commonly used in laser systems to achieve high-precision focusing of laser beams, while negative meniscus lenses are used for beam expansion.
3. Infrared Optics:
Negative meniscus lenses made from infrared-compatible materials are ideal for use in thermal imaging cameras, night vision equipment, and other applications. Infrared Systems.
4. Optical Testing
Meniscus lenses are used in optical testing equipment to control beam diameter and ensure measurement accuracy.
5. Beam Shaping
The unique curvature of meniscus lenses makes them suitable for beam shaping in applications such as holography, spectroscopy, and fiber optics.
6. Medical Devices
Meniscus lenses are also used in medical devices such as endoscopes and ophthalmic devices to provide clear and precise imaging.
Why Choose MOK Optics?
At MOK Optics, we are committed to providing high-quality optical components that meet the needs of our customers. Our meniscus lenses are manufactured using advanced technology and strict quality control processes to ensure excellent performance and reliability. Here are some reasons why you should choose us:
1. Customization
We provide custom solutions to meet your specific needs. Whether you need a specific material, coating, or design, we can work with you to create the perfect meniscus lens for your application.
2. Expertise
With years of experience in the optical industry, our team has the knowledge and expertise to provide you with the best solution for your optical needs.
3. Precision Manufacturing
We have advanced manufacturing equipment that can produce high-precision and high-consistency meniscus lenses.
4. Customer Support
We pride ourselves on providing excellent customer service and support. Our team is always ready to answer your questions and assist you with your project.
5. Competitive Pricing
We offer competitive pricing while ensuring quality to ensure you get the best value for your investment.
Contact Us
If you are looking for high-quality meniscus lenses for your optical system, MOK Optics is your best choice. You are welcome to contact us with your drawings or design specifications so that we can provide you with the perfect lens that best meets your needs. Whether you need a standard design or a custom solution, we can help you.
Let MOK Optics be your trusted partner for all your optical component needs!
